High-Performance Spring Energized Valve Stem Seals | Technical Breakdown by XHH Seals

In demanding industries such as oil & gas, chemical processing, LNG cryogenic, and high-pressure / high-temperature (HPHT) service, the valve stem sealing system is one of the most critical challenges for engineers.

Under the combined assault of pressure cycling, extreme temperatures, and aggressive media, traditional elastomeric seals (such as O-rings) fail prematurely — resulting in leakage, fugitive emissions, and unplanned downtime.

XHH Seals specializes in developing Spring Energized Valve Stem Seals engineered for API 6D-compliant valves, providing zero-leakage reliability under the harshest conditions.

Manufactured from PTFE, PEEK, and corrosion-resistant metal springs, these seals ensure stable sealing performance over a wide temperature and pressure range.

1. Structural Deconstruction: A Precision Multi-Component Assembly

A high-performance valve stem sealing system is not a single seal but a multi-component sub-assembly, engineered to work as one precision unit.

As shown below, this type of assembly typically consists of:

• Core Sealing Element: A PTFE U-Cup Jacket that provides low-friction dynamic sealing.
• Spring Energizer: A metal spring (commonly a Canted Coil or V-spring) that applies constant preload to maintain tight sealing even at low or fluctuating pressures.

• Anti-Extrusion & Support System: High-strength PEEK back-up rings that prevent seal extrusion and stabilize the PTFE jacket under high differential pressures.

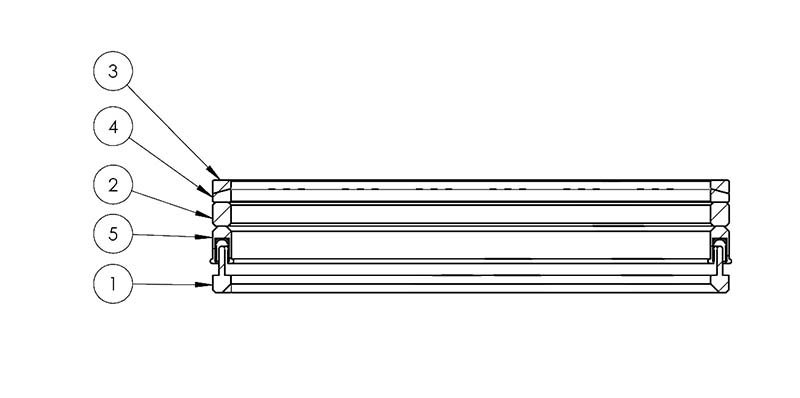

Cross-Sectional Drawing of Spring Energized Valve Stem Seal Assembly

Engineering drawing showing a multi-component valve stem sealing system with PTFE jacket, spring energizer, and PEEK back-up rings for API 6D valves.

The drawing above represents a complete sub-assembly consisting of:

• Item 5: PTFE “U” Cup with metal spring energizer
• Item 2–4: PEEK and backup rings providing extrusion resistance
• Item 1: Primary back-up ring supporting the sealing lip

These components are machined to tight tolerances, ensuring consistent preload and zero-leakage performance under temperature fluctuations from −196 °C to +250 °C.

2. Functional Synergy and Material Science

The superior performance of this sealing technology stems from the synergy between advanced materials and engineered geometry.

• PTFE Seal Jacket (Primary Seal):

           Offers ultra-low friction, broad chemical compatibility, and stability across cryogenic and HPHT service.

• Metal Spring Energizer (Power Source):

           Supplies the initial sealing force when system pressure is low and compensates for thermal contraction or wear. Typical materials include Stainless Steel 316 or Elgiloy®, ideal for corrosive or sour gas environments (NACE MR0175 / ISO 15156).

• PEEK Back-Up Rings (Performance Guarantee):

           Provide exceptional mechanical strength and creep resistance, preventing PTFE jacket extrusion at pressures up to 10,000 psi / 70 MPa or higher.

3. Application: Benchmarking API 6D Valve Stem Sealing Performance

This composite seal assembly is the preferred solution for valve stem sealing in both reciprocating valves (e.g., gate and globe) and rotary valves (e.g., ball and butterfly).

Its design ensures:

• Low Friction & Smooth Operation: PTFE’s self-lubricating properties reduce actuation torque and prevent stick-slip.
• Reliable Leakage Control: The spring maintains sealing integrity through pressure spikes and temperature cycling, meeting API 6D fugitive emission standards.

• High Anti-Extrusion Strength: PEEK support rings reinforce the structure against deformation under extreme pressure.

4. The Engineer’s Value Proposition

For engineers and procurement specialists responsible for critical valve reliability, this design provides measurable operational value:

• Extreme Pressure Resistance – Handles severe pressure spikes with minimal wear.
• Broad Media Compatibility – PTFE resists nearly all industrial fluids.
• Wide Temperature Range – From cryogenic (−196 °C) to HPHT service (+250 °C).

• Longer Mean Time Between Failures (MTBF) – Extends maintenance cycles and reduces leakage incidents.

5. Validated Performance & Compliance

Every XHH spring energized valve stem seal is engineered for compliance with international standards, including:

API 6D, API 608, and NACE MR0175 / ISO 15156.

6. Customized Engineering

XHH Seals provides OEM-equivalent and custom-designed sealing systems for all major valve configurations — including floating, trunnion-mounted, and cryogenic types.

Our in-house CNC manufacturing capability allows rapid prototyping and precise machining of PTFE, PEEK, and metal components according to your valve stem design and groove geometry.

7. Partner with XHH Seals

For over 15 years, XHH Seals has delivered advanced sealing solutions across industries requiring zero-leakage reliability and API 6D compliance.

Our engineering team can assist with seal selection, design validation, and material recommendations for your exact operating conditions.

Facing valve stem leakage challenges?

Submit your operating parameters or groove drawings, and we will provide a complete custom sealing solution — from design to precision production.
