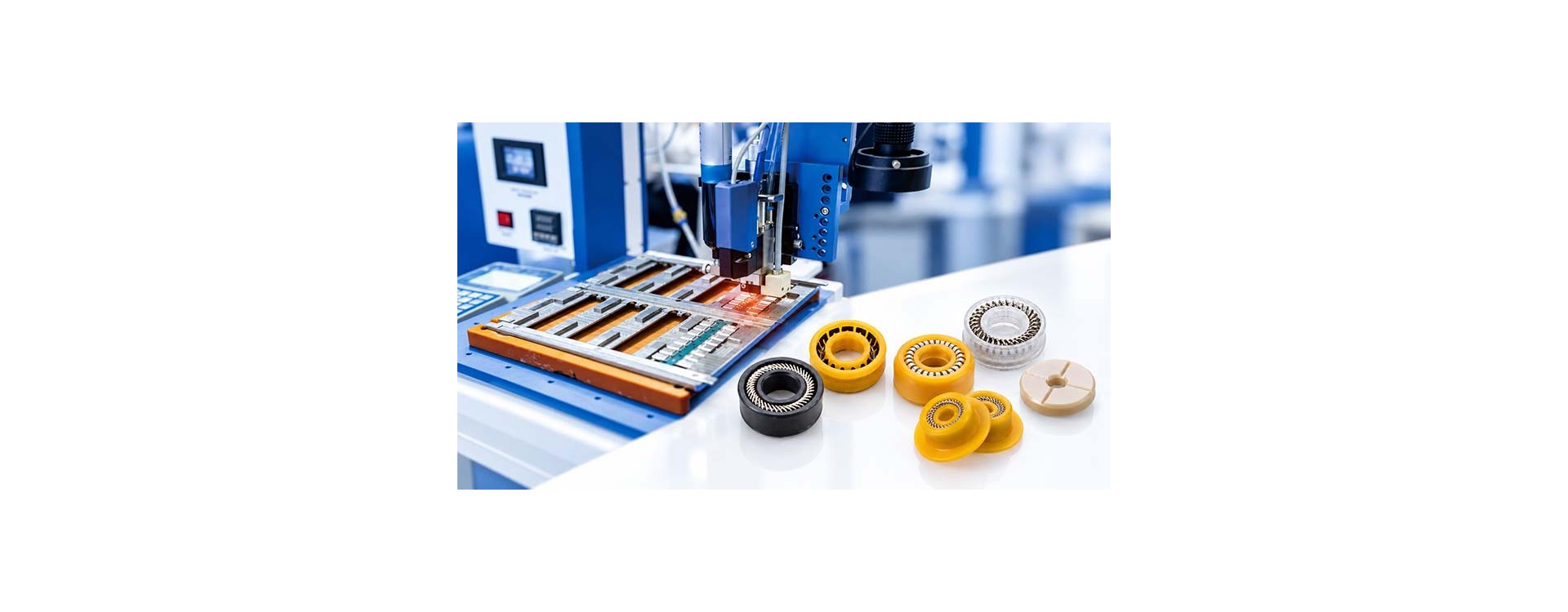

How to Choose Seals for Dispensing Valves: Design, Material and Operating Conditions

The right seal for a dispensing valve depends on more than its dimensions. A seal that fits the groove may still swell in the adhesive, wear during repeated valve cycles, or leak after exposure to a cleaning solvent. Selection starts with three questions: Where is the seal installed? What fluid touches it? How does the valve operate?

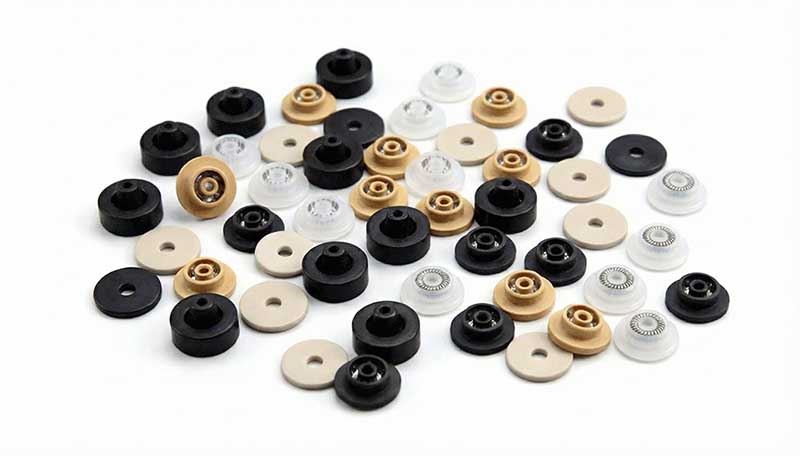

This guide explains the main seal types used in dispensing equipment and the information needed to specify a new or replacement seal. For available components, see our seals for dispensing systems range.

1. Identify the sealing location

A dispensing valve can contain several seals with different jobs. Before selecting a material, locate the seal in the assembly and determine whether it contacts the dispensed fluid.

2. Match the seal design to the motion

O-rings for suitable static joints

O-rings are a common choice for body joints and other stationary connections. Their performance depends on the specified elastomer compound, groove geometry and compression. An O-ring already used by the equipment manufacturer may be the simplest replacement when its dimensions and material are confirmed.

Repeated motion, unsuitable squeeze or a poor mating surface can change the design requirements. Do not substitute a standard O-ring for a dynamic seal solely because the nominal diameter matches.

Diaphragms for fluid isolation

In a diaphragm valve, the diaphragm forms a flexible barrier between the fluid and the drive side. Its geometry and flexing behavior are part of the valve design, so both shape and material must be checked when replacing it. A flat piece of compatible polymer is not automatically a suitable substitute for a formed diaphragm.

If you maintain Nordson EFD equipment, our EFD compatible seals guide provides a starting point for identifying existing replacement parts.

Lip and spring energized seals for specified moving interfaces

A lip profile can seal around a moving shaft or needle where the valve design calls for a dynamic seal. In a spring energized design, a metal spring applies an initial load to the polymer sealing lip. The jacket profile, spring load, groove, mating surface and available space must be considered together; adding a spring does not automatically make a seal suitable for every valve.

For an example of a part-specific design, see the Asymtek replacement parts listed by XHH. A part number is a useful identification point, but confirm the equipment model and seal position before ordering.

3. Check both the dispensed fluid and the cleaning process

Dispensing equipment may handle epoxies, UV-curable adhesives, silicones, sealants, lubricants or other formulated fluids. The cleaning agent can expose a seal to a different chemical environment from the adhesive itself.

Ask for the exact product names or safety data sheets of both fluids. Then check whether the proposed seal material can tolerate the relevant concentration, contact time and temperature. Pay particular attention to swelling, hardening, loss of elasticity and changes in dimensions. A compatibility chart is a screening tool; a production trial may still be necessary for a proprietary formulation.

Common material families include:

4. Review pressure, temperature and cycling together

The seal sees more than a nominal operating pressure. Pressure changes during opening and closing; a moving seal may also experience friction and local heating. Check the valve's normal and peak fluid pressure, operating temperature, cycle rate and expected duty pattern.

For dynamic applications, confirm the needle or shaft finish, alignment and condition. A damaged counterface can quickly damage a correctly selected new seal. High-cycle operation also makes lip load and friction important: a tighter seal is not automatically a longer-lasting one.

There is no universal changeover pressure or service-life figure that applies to every dispensing valve seal. Use the equipment design, fluid conditions and observed wear to establish the appropriate inspection and replacement plan.

5. Verify dimensions and replacement compatibility

When replacing a seal, send the original part number if available, but do not rely on it alone when the valve has several revisions. A useful identification package includes:

1.  Equipment manufacturer, valve model and serial or revision information.
2.  OEM part number, if known, and the seal's location in the assembly.
3.  Clear photos of the old seal and its installation position.
4.  Seal dimensions and cross-section, ideally from an undamaged part or drawing.
5.  Dispensed fluid, cleaning agent and operating conditions.
6.  Quantity required and any known failure symptom.

If a worn part has swollen or deformed, its measured dimensions may differ from the original. The groove and mating component can help resolve this.

What if the valve is already leaking?

First identify where the leakage occurs: at a body joint, around a moving component, or at the nozzle after shutoff. These symptoms do not all point to the same seal. Inspect the removed part for cuts, swelling, flattening and wear, then check the groove and mating surface. Also review fluid pressure, valve settings and deposits at the outlet before attributing every drip to seal failure.

If you already know the equipment brand, our Nordson® Seal Cross-Reference Guide can help you start the part identification process.

Frequently asked questions

1. Can I choose a seal from its dimensions alone?

No. Dimensions identify a possible fit, but the seal position, profile, material, fluid exposure and operating conditions determine whether it is suitable.

2. Is PTFE always better than an elastomer for dispensing valves?

No. PTFE may be appropriate for a specified jacket or lip design, while an elastomer may be appropriate for a static O-ring. The valve geometry and application determine the choice.

3. Can the same seal material be used for every adhesive?

Do not assume so. Adhesives and cleaning agents have different formulations. Check the exact fluids and the specific material compound before selecting a replacement.

4. Can XHH manufacture a replacement from an old seal?

An old seal, clear photos and installation dimensions can be used to assess a replacement. If the original has worn or swollen, the groove dimensions or a drawing may also be needed to establish the intended geometry.

Request a dispensing valve seal review

XHH Seals manufactures custom seals and compatible replacement components for dispensing equipment. Send your valve model, part number or photos, seal dimensions, dispensed fluid and cleaning agent to xhh@xhh-smartech.com. We can review the information and discuss a suitable design or material for your application.
