Breaking Boundaries: The Critical Role of High-Performance Spring Energized Seals in Autonomous Mapping and Robotics

Application Challenge: Stringent Demands for High-Precision Sensor Protection

LiDAR scanners mounted on autonomous platforms (UAVs/UGVs) must maintain centimeter- or even millimeter-level accuracy in highly hostile environments. The rotating bearing, as the core dynamic component, directly confronts the following engineering challenges:

• Wear and Dust Contamination: High-concentration dust in mining and construction poses a severe wear threat to conventional seals. Any particle ingress into the bearing leads to a loss of accuracy and potential equipment failure.
• Energy Efficiency (Friction): Autonomous platforms rely on battery life. The friction generated by the seal is a critical factor in system power consumption. High friction not only shortens operation time but also affects sensor thermal stability due to heat generation.
• Temperature and Media: Equipment must withstand wide temperature fluctuations and resist erosion from oils, moisture, and corrosive fluids.

The Solution: Technical Advantages of PTFE-Graphite Spring Energized Seals

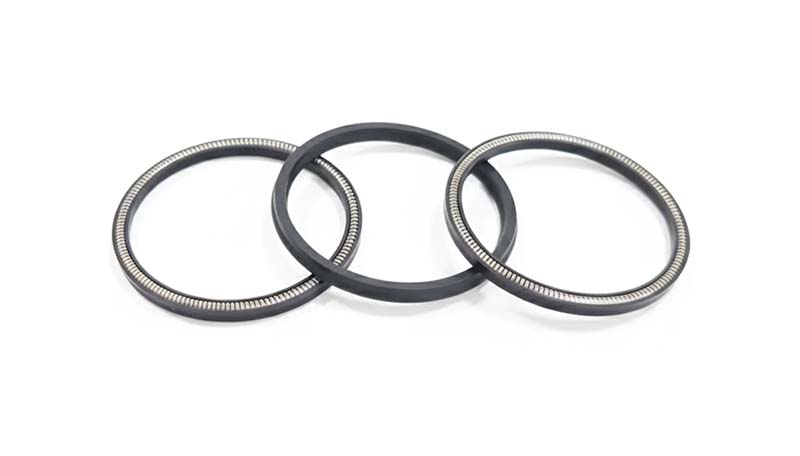

The SES utilizing a PTFE-Graphite jacket and a Helical Spring offers an optimized solution for these operating conditions.

1. Dynamic Performance Optimization and Energy Management

• PTFE Base Material: Features extremely low surface energy and friction coefficient, significantly reducing the required torque for bearing rotation startup and running.
• Graphite Filler: The self-lubricating properties and enhanced wear resistance of Graphite enable the seal to withstand high-speed continuous operation, effectively mitigating heat buildup and minimizing bearing friction losses to a fraction of traditional elastomeric seals.
• Result: Extends the battery life of autonomous platforms and maintains the high precision stability of the LiDAR rotating mechanism.

2. Seal Integrity and Environmental Protection

• Helical Spring Preload: The Helical Spring delivers a uniform and stable high radial load. This constant force effectively compensates for the cold flow characteristics of the PTFE jacket, ensuring a reliable sealing contact force even at low or zero system pressure.
• PTFE Chemical Inertness: The jacket is virtually chemically inert, isolating the bearing cavity from external acidic, oily, or corrosive media and guaranteeing the purity of the internal lubricant.
• Result: Achieves high-standard IP-rated protection for the LiDAR rotating bearing, dramatically enhancing equipment reliability in extreme environments.

3. Long-Term Reliability and Maintenance Cost

• High Wear-Resistant Material Combination: The superior wear resistance of the PTFE-Graphite jacket, combined with the continuous compensating force of the spring, ensures an exceptionally long service life for the seal.
• Result: Significantly extends the LiDAR equipment's maintenance intervals, reduces downtime in hazardous operating areas, and lowers the Total Cost of Ownership (TCO), meeting B2B demands for industrial-grade durability.

Conclusion

The PTFE-Graphite Helical Spring Energized Seal represents an engineered solution designed to solve the critical protection challenges of high-precision LiDAR sensor bearings on autonomous mapping platforms. Its combined advantages in low friction, high wear resistance, chemical inertness, and temperature adaptability make it a key technical guarantee for ensuring the efficient, precise, and reliable operation of modern industrial robotics and unmanned systems in harsh and complex work environments.
