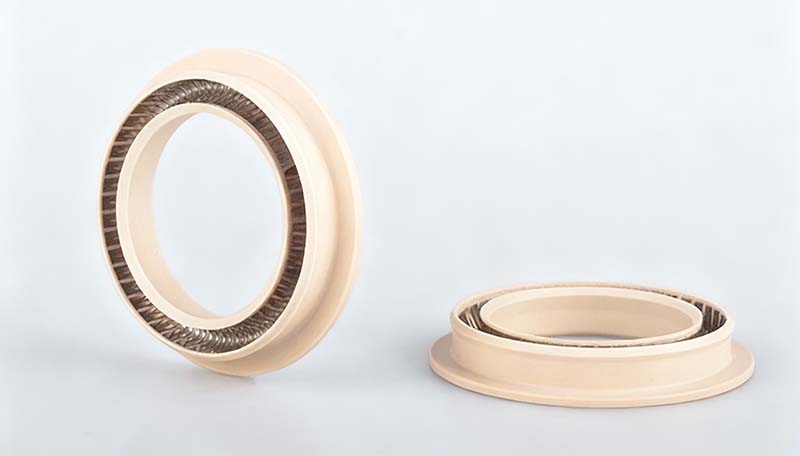

AR10414-113-WC Compatible Rod Spring Energized Rotary Lip Seal

Factory-Direct Replacement | Flexible MOQ | ISO 9001:2015 Certified

OEM part numbers are used for identification only. XHH Seals is not sponsored, endorsed, or affiliated with the original manufacturer.

1. What Is AR10414-113-WC?

According to the original catalog description, AR10414-113-WC is a spring-energized rotary lip seal made from a PTFE + PHB compound, specified for a temperature range of -40°C to +260°C and supplied in brown color.

This seal is used in high-performance rotary positions where:

• Standard rubber seals fail due to extreme temperatures
• Low friction and chemical resistance are critical
• Long-term sealing reliability is required

2. Why Choose an XHH AR10414-113-WC Replacement?

     Lower Cost

• Buy direct from the manufacturer, eliminating distribution markups
• Pricing based on material and machining, not brand premiums
• Typical savings of 30-50% on small to medium batches vs. OEM channels

     Faster Delivery

• Samples: 2–3 weeks after design confirmation
• Production batches: 4–6 weeks (depending on quantity)
• No multi-tier supply chain delays or uncertainty

     Flexible MOQ

• Small repair quantities supported
• Series production for OEM projects is available
• Mix related sizes in one order where feasible

3. How the Replacement Process Works

     ① Step 1: Send Us Your Information

      To design a compatible seal, please provide:

• Part number: AR10414-113-WC
• Shaft/bore dimensions and groove data (diameter, width, depth)
• Operating conditions: medium, temperature, pressure, speed
• Seal sample or drawing (photos and sketches also helpful)

     ② Step 2: We Engineer Your Solution

     Our engineering team will:

• Design a compatible PTFE seal with a correct spring energizer
• Confirm dimensions and materials based on your application
• Provide technical drawing and quotation for review

     ③ Step 3: You Receive Your Seals

     Once the design is approved:

• We machine samples for testing on your equipment
• After validation, supply production batches as needed
• Each batch undergoes dimensional inspection before shipment

Email: xhh@xhh-smartech.com

Subject: AR10414-113-WC replacement inquiry

4. About XHH Seals

XHH Seals is an ISO 9001:2015-certified manufacturer of custom PTFE spring-energized seals, providing in-house CNC machining and engineering support.

We specialize in:

• Custom PTFE spring-energized seals for extreme conditions (aerospace, LNG/cryogenic, high-pressure valves, mining hydraulics)
• Engineering support for maintenance shops, distributors, and OEM design teams

Our goal is to help B2B customers quickly identify the right sealing solution, reduce maintenance costs, and secure a stable, traceable supply chain.

Legal Notice: XHH Seals is not an authorized distributor or manufacturer of the original AR10414-113-WC part. All seals supplied by XHH Seals are our own engineered products, designed as compatible alternatives based on customer drawings, samples, and specifications. For safety-critical applications, your internal engineering and quality teams must perform full testing, qualification, and final approval.
