GRACO MD2 Rebuild Kit Replacement (255218, 255219, 255220): OEM Cross Reference & Cost-Effective Alternatives

Are you still sourcing original GRACO MD2 rebuild kits dealing with high costs and unpredictable lead times?

For many maintenance teams and procurement managers, OEM kits such as the 255218, 255219, and 255220 present significant operational challenges:

• High Procurement Cost: Inflated OEM pricing that drains maintenance budgets.
• Limited Availability: Supply chain delays causing unacceptable production downtime.
• No Flexibility: Fixed material options that may not be optimized for your specific harsh media.

This guide provides a full technical cross-reference and introduces engineered aftermarket replacement kits from XHH Seals. We deliver 100% drop-in equivalents that offer identical or upgraded performance, ensuring your dispense valves stay online while significantly reducing your OPEX.

OEM vs. XHH Replacement: Why Switch?

When replacing critical valve components, risk mitigation is key. Here is how XHH aftermarket kits compare directly to OEM Graco parts:

Common Failure Modes in MD2 Valves (And How We Solve Them)

Dispense valves fail for specific reasons. XHH engineered materials (UHMWPE, PEEK, FKM) are strategically selected to directly address these common pain points:

• Premature Seat Wear: Caused by highly abrasive fillers (like thermally conductive silicones). Solution: Our 255220 kit utilizes true K01 Tungsten Carbide for maximum abrasion resistance.
• Shattered Hard Seats: Caused by high-frequency needle impact. Solution: We integrate precision PEEK support washers to absorb mechanical shock and prevent carbide fracturing.
• Fluid Crossover (A/B Mixing): Caused by worn dynamic seals. Solution: Our 255218 back-end kits use high-grade UHMWPE and specialized NBR/Polymer U-cups for ultimate extrusion resistance.

Technical Cross-Reference & BOM Specifications

To ensure exact compatibility, refer to our detailed BOM breakdowns below for the three primary rebuilding zones of the MD2 valve.

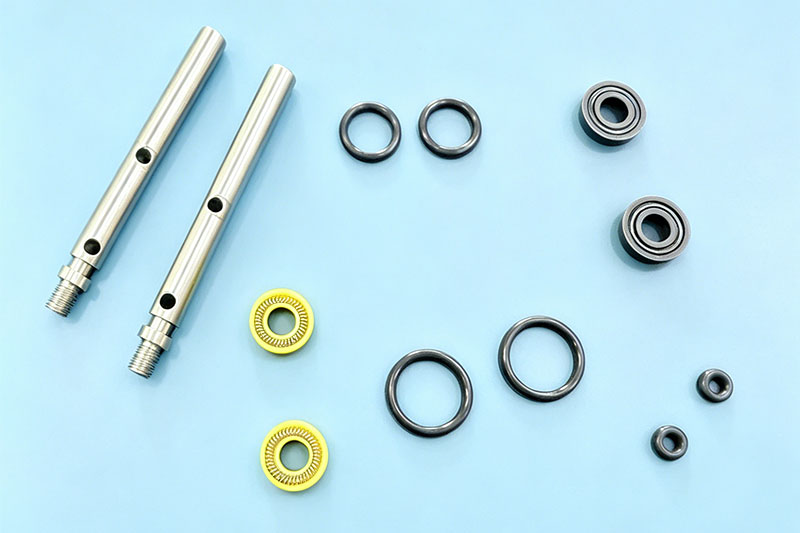

1. Back-End Wet Section: 255218 Equivalent

Prevents A/B chemical migration into the pneumatic cylinder.

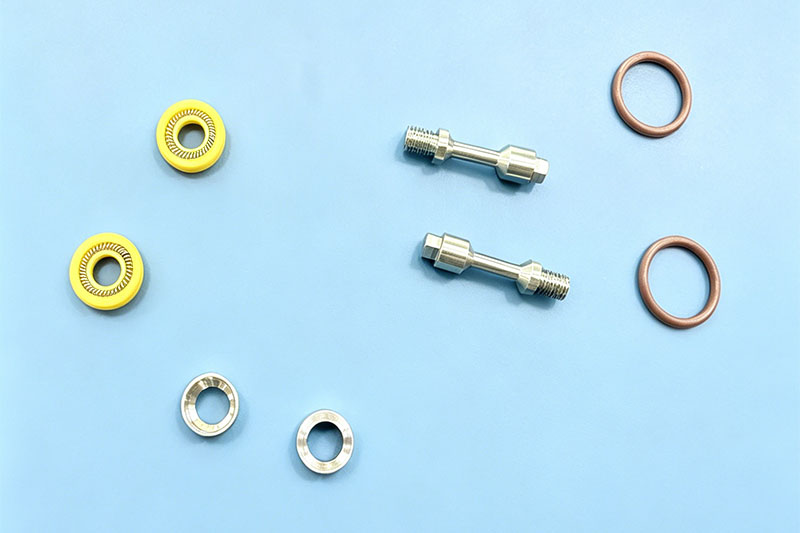

2. Front-End Soft Seat: 255219 Equivalent

Engineered for non-abrasive fluids (unfilled epoxies, standard polyurethanes) to prevent dripping.

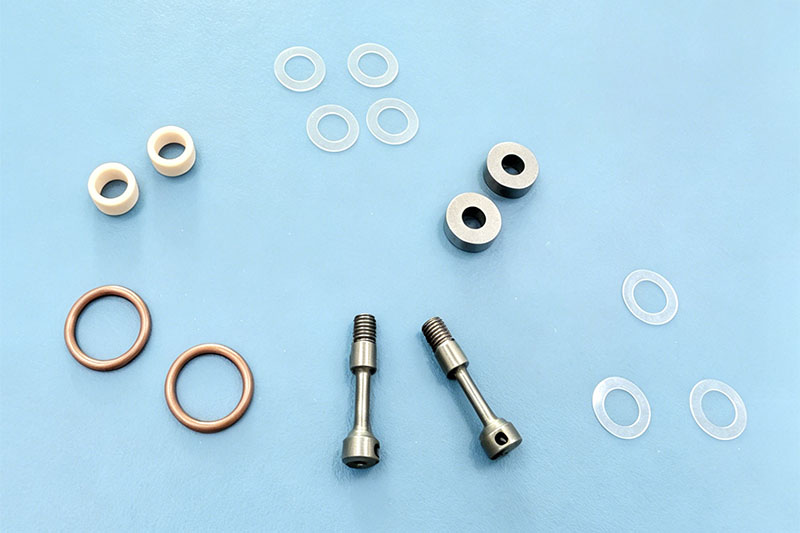

3. Front-End Hard Seat: 255220 Equivalent

Mandatory for highly abrasive and high-viscosity fluids to prevent abrasive wash-out.

Typical Applications & Industries

Our MD2 replacement kits are currently maintaining fluid control stability in demanding environments worldwide:

• Two-component adhesive dispensing systems
• Automotive sealing & bonding lines
• Electronics potting (TIM / abrasive silicones)
• Aerospace composite bonding
• Industrial fluid metering systems

Request a Quote for GRACO MD2 Replacement Kits

Looking for a reliable, cost-effective alternative to GRACO 255218, 255219, or 255220?

• Drop-in replacement, no modification required
• Engineered materials for extended service life
• Fast global delivery & bulk B2B pricing

Send your part number or application details to xhh@xhh-smartech.com.

Our engineering sales team will respond within 24 hours with exact pricing, lead times, and technical confirmation.
