Hydraulic Seals vs Oil Seals: Differences, Types, and Applications

Hydraulic seals and oil seals are both important parts that stop fluids from leaking out of machines. They may look the same, but they are made for different reasons and are used for different things.

This article explores hydraulic seals vs oil seals in terms of structure, materials, performance, and industrial applications, as well as how to choose the right one for your machinery.

Key Differences Between Hydraulic Seals and Oil Seals

1. Primary Function:

Oil seals keep lubricants in and contaminants out around rotating shafts.

Hydraulic seals contain pressurized fluid in cylinders, pumps, and valves, preventing leaks under high-pressure conditions.

2. Construction & Materials:

Oil seals typically have a rigid metal or plastic outer case and a flexible rubber or elastomer lip (often spring-energized) that fits tightly to the shaft.

Hydraulic seals, molded from polyurethane or high-grade rubber, come in many styles (piston seals, rod seals, wipers, guide rings, etc.) and are designed to seal linear motion under load.

3. Pressure & Motion:

Oil seals are used when there is moderate pressure and high shaft speed. They are used to create long-lasting sealing of rotary motion.

Hydraulic seals are built for high-pressure systems (hundreds to thousands of PSI) with reciprocating (linear) piston or rod motion. They must be able to handle changes in pressure as the fluid moves during the cylinder's movement.

4. Application Environment:

Oil seals work in applications like gearboxes, engines, and pumps where shafts spin.

Hydraulic seals are used in cylinders and hydraulic machinery where pistons and rods move under load.

5. Material & compatibility:

Oil seals often use NBR (nitrile), FKM (Viton), or silicone for petroleum oils.

Hydraulic seals use polyurethane or specialty rubbers suited to hydraulic fluids.

In short, oil and hydraulic seals are designed for different tasks. Oil seals are used for high-speed rotational sealing, while hydraulic seals can handle high pressures and linear motion. The right seal depends on the seal type matching the system's pressure and motion requirements.

What Are Hydraulic Seals?

Hydraulic seals are important parts of hydraulic systems. They stop fluid from leaking and keep pressure steady in hydraulic cylinders. They are usually made from materials that don't include metal and are designed to handle the tough conditions of hydraulic operations.

Types of Hydraulic Seals

Common hydraulic seals include piston seals, rod seals, wipers (scrapers), wear (guide) rings, and backup rings.

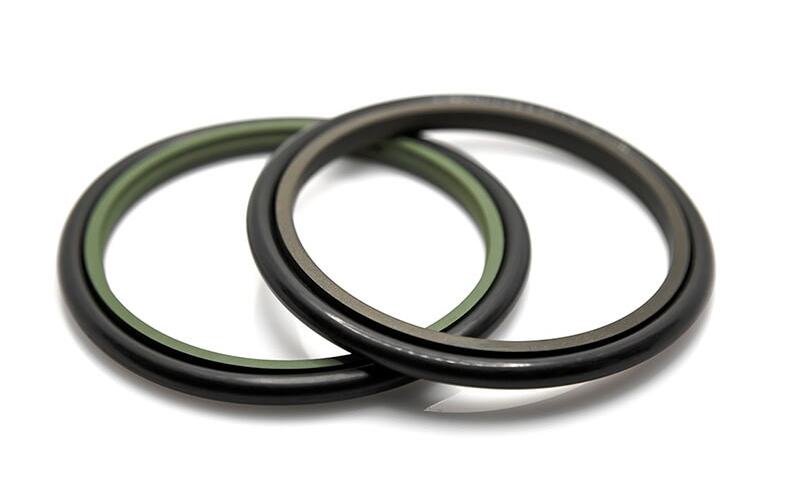

Piston Seals: These seals fit around the piston inside the cylinder bore. Their job is to separate the high-pressure fluid on one side of the piston from the other side, maintaining pressure and preventing fluid bypass. Piston seals (often made of polyurethane or NBR rubber) endure repeated reciprocation and high pressure

Rod (Gland) Seals: Installed around the moving cylinder rod, rod seals keep hydraulic fluid from leaking out of the cylinder as the rod moves. They seal against the reciprocating rod under fluid pressure and motion. Like piston seals, rod seals are typically polyurethane or rubber, and they prevent leaks where the rod exits the cylinder.

Wiper (Scraper) Seals: Wipers are positioned at the cylinder head on the rod side. As the piston rod retracts, the wiper scrapes off dirt, dust, and debris from the rod before it enters the cylinder. This protects the hydraulic fluid and other seals from contamination, extending system life.

Wear (Guide) Rings: These are non-sealing rings made of PTFE or composite material. Wear rings support the piston and rod under lateral loads, preventing metal-to-metal contact between moving parts. They guide the piston/rod and absorb side loads, protecting the cylinder bore and rod from scoring.

Backup Rings: Rigid rings (often PTFE) used alongside softer seals (O-rings or U-cup seals). In very high-pressure systems, backup rings prevent the primary seal from extruding into gaps. They are especially used when pressure exceeds 1500 psi, closing off the extrusion gap and supporting the seal lip.

What Are Oil Seals?

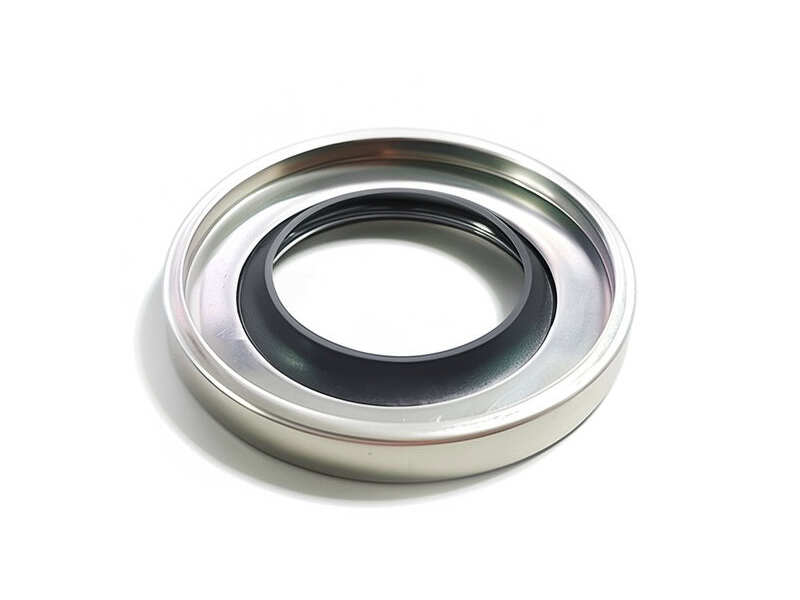

Oil seals (rotary shaft seals or radial lip seals) are used to retain lubrication and exclude contaminants around rotating shafts. Unlike hydraulic seals, oil seals are mainly designed for rotational applications.

Types of Oil Seals

Oil seals come in various designs to suit different applications:

Single Lip Seals: Feature one sealing lip and are used primarily to retain lubricants.

Double Lip Seals: Include an additional lip to provide extra protection against contaminants.

Springless Seals: Lack a garter spring and are suitable for low-speed, low-pressure applications.

Duplex Seals: Designed to prevent the mixing of two different fluids by sealing in both directions.

Oil seal applications

Automotive engines (sealing crankshafts, camshafts, and transmission shafts); industrial pumps, compressors,  motors, gearboxes, etc, any machinery with rotating shafts.

Hydraulic vs Oil Seals: A Comparison Table

This table highlights key differences. In practice, choose hydraulic seals when the system involves a high-pressure cylinder or actuator; choose oil (shaft) seals when dealing with a rotating shaft and lubricant.

How to Choose Between Hydraulic Seals and Oil Seals

When selecting a sealing solution, consider the following:

1. Reciprocating vs. Rotary:

 If your system has a piston/rod moving under high pressure (e.g., a hydraulic cylinder), use hydraulic seals (piston/rod seals, etc.).

If the system involves a spinning shaft (e.g., a pump or gearbox), use an oil (rotary shaft) seal to retain fluid.

2. Pressure Level:

For pressures above ~1000 psi (hydraulics), choose seals rated for extrusion resistance (e.g., polyurethane piston seals with backup rings).

For low-pressure lubrication circuits, a standard oil seal is usually sufficient.

3. Fluid Compatibility:

Match the seal material to the fluid.

Nitrile and FKM are common for oils; polyurethane and specialized rubber for hydraulic fluids.

4. Speed and Friction:

High shaft speeds favor durable lip seals. In fast-acting cylinders, use seals with low friction to reduce stick-slip. Consult seal datasheets for speed/pressure limits.

5. Contamination:

If the environment is dirty, include wipers or scrapers to protect internal seals. A poor choice (e.g., using an oil seal in a high-pressure reciprocating application) will fail quickly.

In short, evaluate your system requirements – pressure, motion type, fluid, speed, and environment – to decide between hydraulic seals vs oil seals. The right choice ensures reliable sealing and long service life.

FAQ – Hydraulic Seals vs Oil Seals

Q1: Can I use an oil seal in place of a hydraulic seal?

A: Generally, no. Oil seals are designed for rotating shafts and low-pressure environments, while hydraulic seals handle linear motion and high pressures. Substituting them could lead to system failure.

Q2: What material is best for hydraulic seals?

A: Polyurethane (PU), PTFE, and FKM are commonly used. PU offers wear resistance, PTFE is ideal for chemical compatibility, and FKM works well in high-temperature systems.

Q3: What causes hydraulic seals to fail?

A: Common causes include improper installation, contamination, temperature extremes, and incompatible fluid use. Regular inspection helps avoid downtime.

Q4: How long do oil seals last in rotating equipment?

A: Lifespan depends on RPM, temperature, pressure, and lubrication. High-quality oil seals in ideal conditions can last several thousand operating hours.

Q5: Do XHH Seals provide custom sealing solutions?

A: Yes. XHH Seals offers OEM/ODM services for hydraulic and oil seals, including custom dimensions, materials, and logo marking. Contact us for a quote.

Need help selecting the right seal for your application? Contact xhh@xhh-smartech.com for expert consultation and custom sealing solutions.
