Cantilever Spring Energized Piston Seal

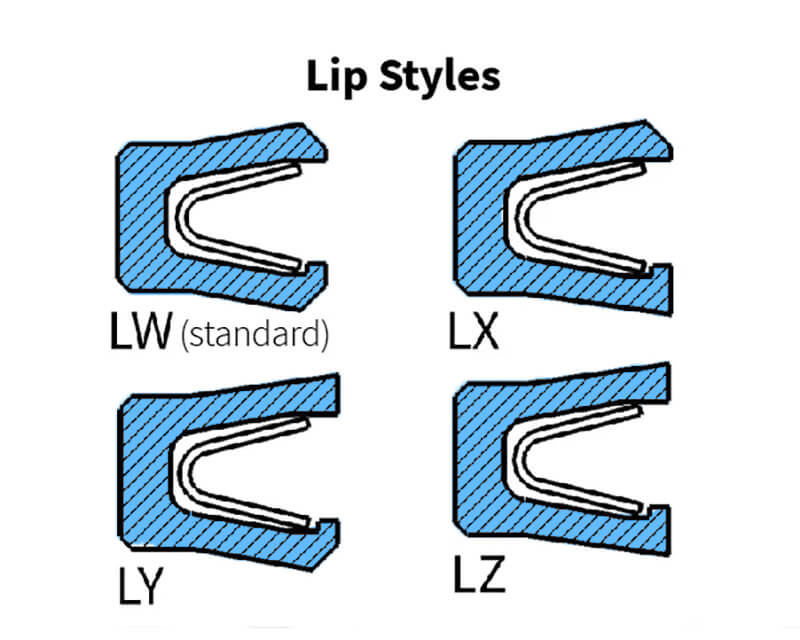

Cantilever Spring Energized Piston Seals use a V-shaped spring inside a polymer jacket. During installation, the compressed V-spring provides sealing force to ensure a tight seal.
These seals replace rubber u-cups when they fail from chemical attack, extreme temperatures, friction, or wear. They're ideal for reciprocating applications like shocks, hydraulic cylinders, pumps,, and compressors.
The spring design concentrates load at the seal's front, making it suitable for environmental protection and scraping viscous materials. For FDA clean-in-place applications, the spring cavity can be filled with silicone.
STANDARD SEAL MATERIALS
| |||||||||||||||
|
STANDARD SPRING MATERIALS
Spring Material
| Application
|
300 Series Stainless Steel | General purpose, standard spring material |
Elgiloy | Improved performance and corrosion resistance |
Hastelloy C276 | Maximum chemical/corrosion resistance |
