Cantilever Spring Energized Piston Seal
zoom_out_map
chevron_left chevron_right
Out-of-Stock

Cantilever Spring Energized Piston Seal

Cantilever Spring Energized Piston Seals use a V-shaped spring inside a polymer jacket. During installation, the compressed V-spring provides sealing force to ensure a tight seal.

These seals replace rubber u-cups when they fail from chemical attack, extreme temperatures, friction, or wear. They're ideal for reciprocating applications like shocks, hydraulic cylinders, pumps,, and compressors.

The spring design concentrates load at the seal's front, making it suitable for environmental protection and scraping viscous materials. For FDA clean-in-place applications, the spring cavity can be filled with silicone.

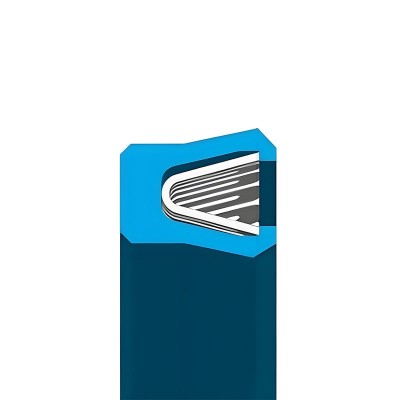

CANTILEVER SPRING ENERGIZED PISTON SEAL

STANDARD SEAL MATERIALS

Description

Color

Applications

Virgin PTFE

White

Light Duty / Static / Cryogenics

Carbon filled PTFE

Black

General Purpose

Virgin UHMWPE

Translucent White

Viscous Media / Water

Polyimide filled PTFE

Orange/Brown

High Sealabilty / Soft Hardware





STANDARD SPRING MATERIALS



Spring Material

Application

300 Series Stainless Steel

General purpose, standard spring material

Elgiloy

Improved performance and corrosion resistance

Hastelloy C276

Maximum chemical/corrosion resistance
