Polyester Resin Guide Strip / Tape

Polyester Resin Guide Strips are high-performance guiding elements specifically engineered for hydraulic seals and pneumatic cylinders. Installed on pistons or rod ends, they serve to absorb lateral forces, prevent metal-to-metal contact, and ensure precise axial movement. Manufactured from durable polyester resin composite, these guide strips exhibit excellent wear resistance, dimensional stability, and thermal endurance, making them ideal for demanding applications.

Polyester Resin Guide Tape

Key Features

Material: High-strength polyester resin composite

Function: Guides the piston or rod and prevents direct contact between moving metal parts

Excellent wear resistance even under high pressure and side loads

Low friction coefficient, minimizing heat and energy loss

High-dimensional stability for precise guiding

Easy to cut and install, available in rolls or pre-cut lengths

Technical Specifications

PropertyValue
MaterialPolyester Resin
Operating Temperature Range-40°C to +120°C
Max Surface PressureUp to 250 N/mm²
Recommended Clearance FitBased on ISO 10766 or customer specs
AvailabilityRolls (10m, 25m), or custom-cut sizes

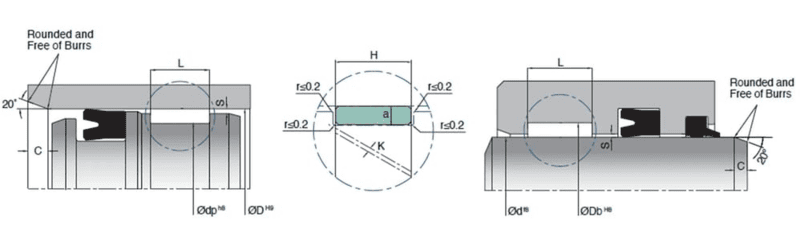

KPB

(Image source: Kastas official website)

Applications

Polyester resin guide strips are used in a wide range of hydraulic and pneumatic systems, including but not limited to:

Hydraulic cylinders in industrial automation

Construction machinery (e.g., excavators, loaders)

Plastic injection molding machines

Die casting and forging equipment

Mobile hydraulic equipment

Aerospace and defense actuators

Selection Guide

When selecting a polyester resin guide tape, consider the following factors:

Installation Location: Piston or rod side

Operating Pressure & Load: Ensure compatibility with max radial forces

Temperature Range: Match application thermal environment

Stroke Speed: Consider friction and lubrication requirements

Housing Dimensions: Verify slot width and depth for proper fit

We offer a wide range of standard sizes, and custom dimensions are available upon request. For help with product selection or technical consultation, please contact our team.
