Cantilever Spring Energized Rod Seals

Cantilever Spring Energized Rod Seals use a V-shaped spring embedded in a polymer jacket. When installed, the compressed V-spring provides sealing energy for effective sealing. They commonly replace rubber U-cups that fail due to chemical attack, extreme temperatures, friction, or wear.

These seals are ideal for reciprocating applications like shocks, hydraulic cylinders, pumps, and compressors. The spring design concentrates load at the seal's front, making it suitable for environmental exclusion and scraping viscous media. For FDA applications, the spring cavity can be filled with silicone.

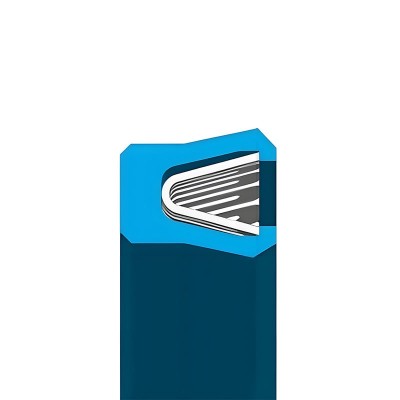

CANTILEVER SPRING ENERGIZED ROD SEAL

STANDARD SEAL MATERIALS

Description

Color

Applications

Virgin PTFE

White

Light Duty / Static / Cryogenics

Carbon filled PTFE

Black

General Purpose

Virgin UHMWPE

Translucent White

Viscous Media / Water

Polyimide filled PTFE

Orange/Brown

High Sealabilty / Soft Hardware





STANDARD SPRING MATERIALS



Spring Material

Application

300 Series Stainless Steel

General purpose, standard spring material

Elgiloy

Improved performance and corrosion resistance

Hastelloy C276

Maximum chemical/corrosion resistance
